Zone by Pump

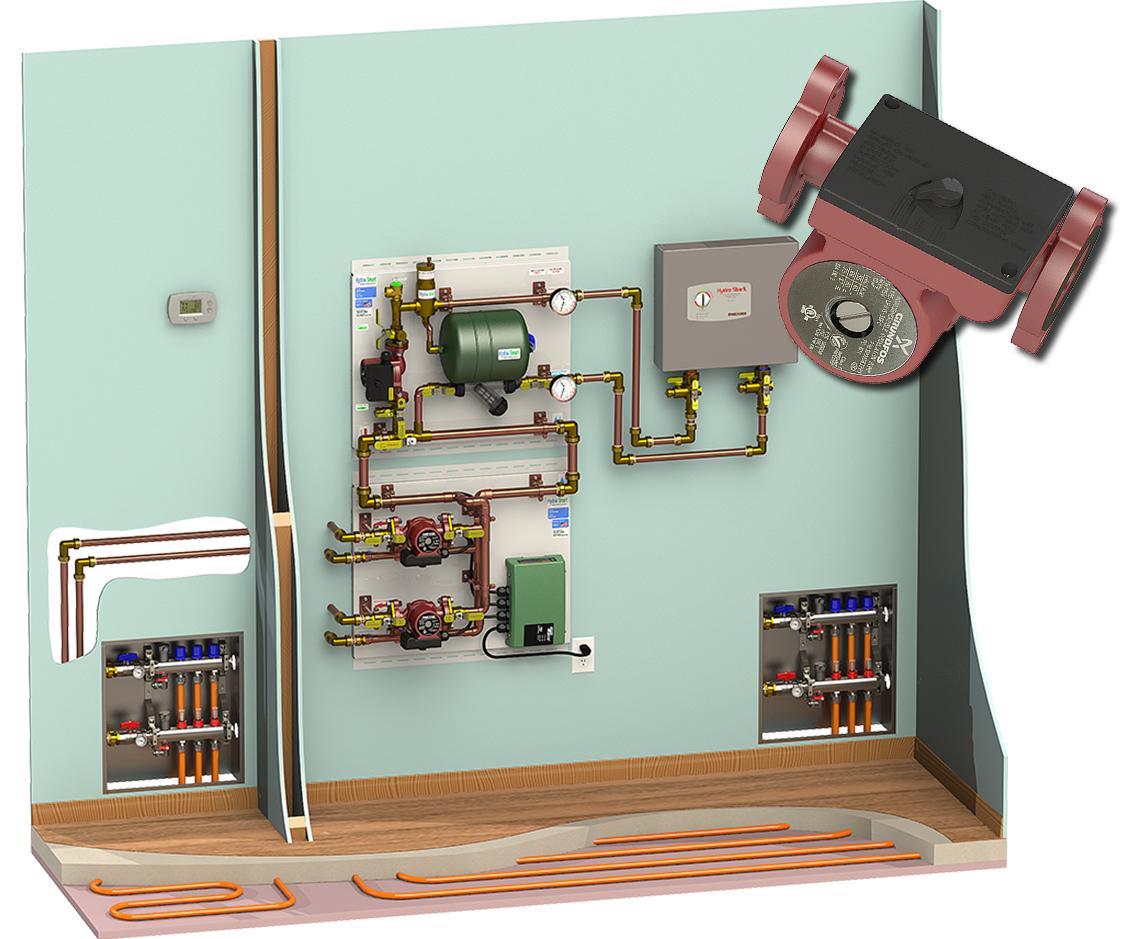

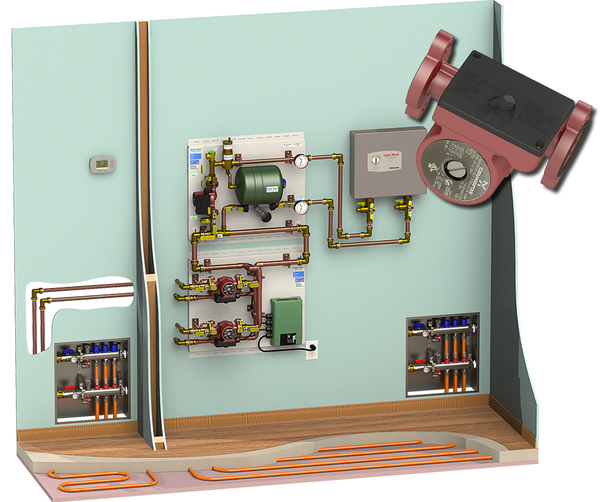

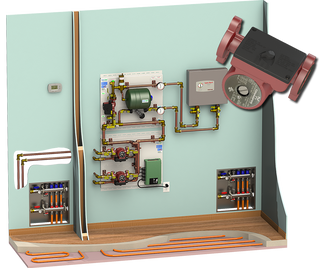

Hydro Shark Electric Boiler w/ HSPS120MPL Master Panel and Zoning Panel
divider
The Master Pump Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
Pair with a pump zoning panel based on the number of zones needed.
divider
2-4
Number of Thermostats
140° F
Max Water Temperature
120,000
Max BTU's
Hydro Shark Electric Boilers
Low Temperature

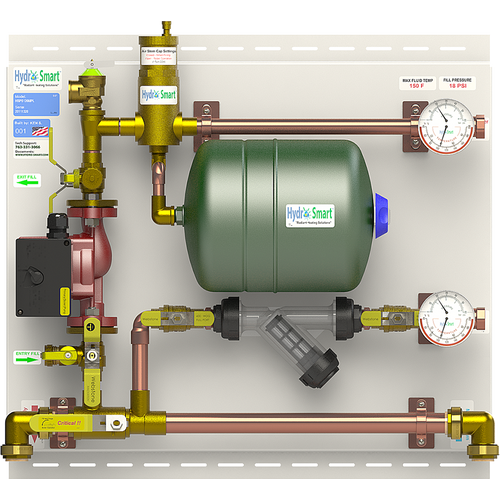

HSPS120MPL
Zone by Pump Master Panel
HS1T2ZPMP
Zoning by Pump Panel
2 Zone / 1 Water Delivery Temperature
HS1T3ZPMP
Zoning by Pump Panel
3 Zone / 1 Water Delivery Temperature
HS1T4ZPMP
Zoning by Pump Panel
4 Zone / 1 Water Delivery Temperature
