Zone by Actuator

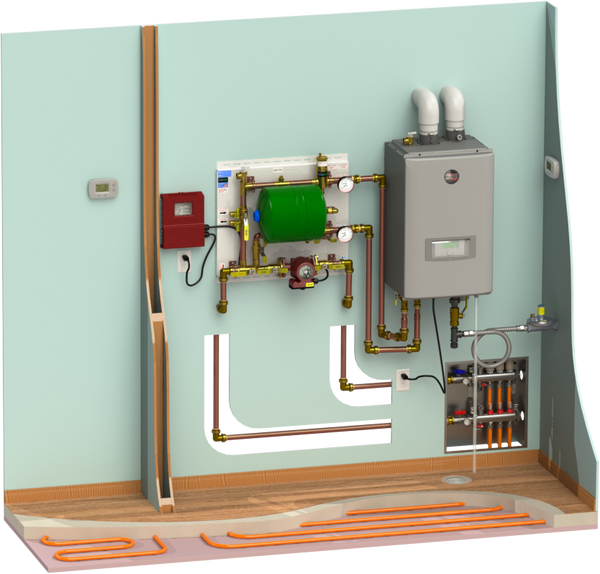

Ruud Gas Boiler w/ CMActuator-100-G-XXXX-2699-Ruud Master Panel
divider
The Master Actuator Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
This system is used with a high temperature boiler and tubing-in-concrete, staple up, baseboard and radiator emitters.
No zoning panels needed as the zones are controlled by the actuators located on the manifolds.
divider
2-4
Number of Thermostats
190° F
Max Water Temperature
190,000
Max BTU's
Ruud Combi Gas Boiler
High Temperature
CMACTUATOR-100-G-XXXX-2699-RUUD Master Panel
Zone by Actuator Master Panel
24V Thermal Actuator - Normally Closed
24V, 4-Wire w/ End Switch
