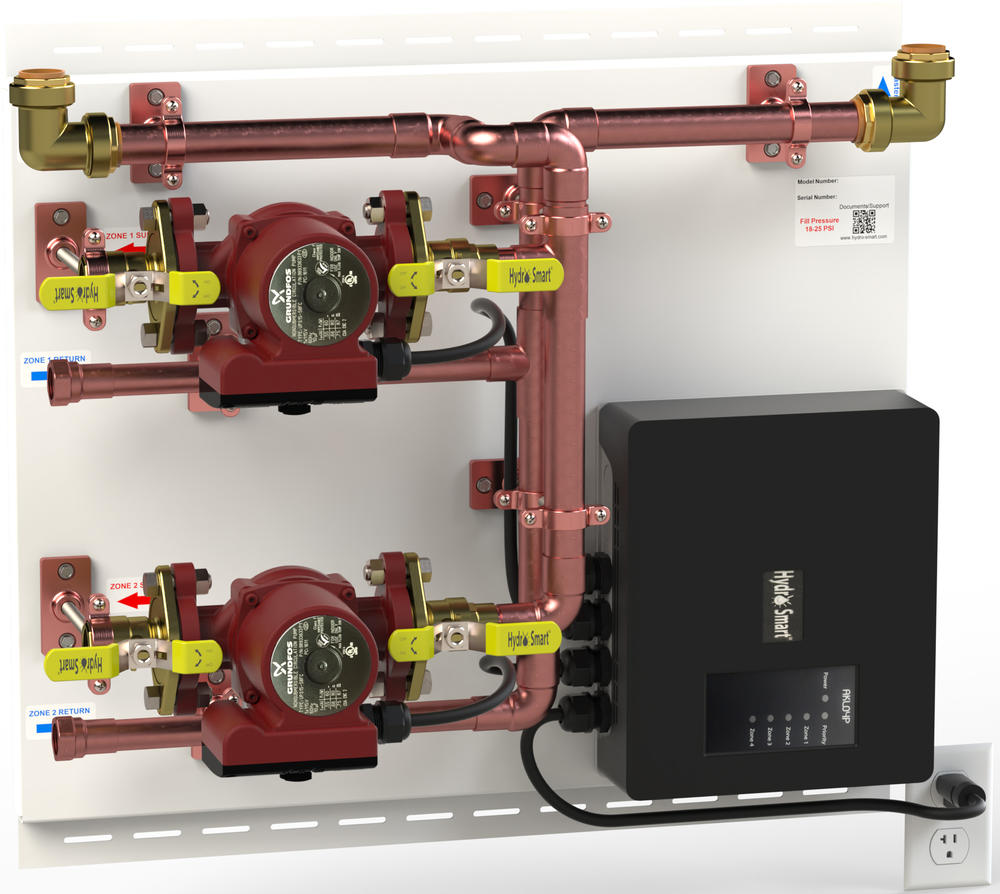

HS1T2ZPMP - 1 Temp, 2 Zone by Pump Zoning Panel
HS1T2ZPMP - 1 Temp, 2 Zone by Pump Zoning Panel

HS1T2ZPMP - 1 Temp, 2 Zone by Pump Zoning Panel

sku: 665-1240

This Zoning Panel works with various Master Panels and is utilized when more than one thermostat zones is required in the system. The Zone Panel extracts the processed heated fluid from the Master Panel and redistributes to each thermostat emitter zone. The emitter circuit has hydraulic separation from the Master Panel for independent flow adjustments of each of the emitter zoning circuits. The water delivery temperature is the same for all heating zones.

divider
Features


• Must be installed with a master radiant heat integrator panel
• 3 speed zoning pump
• 3/4" FPT supply to emitter
• 3/4" FPT return from emitter
• 1" FPT supply from master radiant heat integrator panel
• 1" FPT return to master radiant heat integrator panel
• Taco #SR504 pump controller
• Cord to connect to primary pump on master radiant heat integrator panel
• 10' cord with plug
• Not for use with tank style or tankless water heaters
• This item is not for sale to these Provinces, States, or Territories: AK, HI

Compatible Master Panels Required

Pair with one of our Hydro-Smart panels that are pre-wired, pre-plumbed and pressure tested for and easy and reliable radiant heating solution.

HSPS120MPL

Low Temp Master Pump Panel

# of Zones: 2-4

More Information
HSPS120MPH

High Temp Master Pump Panel

# of Zones: 2-4

More Information
HSPS190MPH

High Temp Master Pump Panel

# of Zones: 2-4

More Information

Required Number of Thermostats:

2

One for each Zone
