Zone by Pump

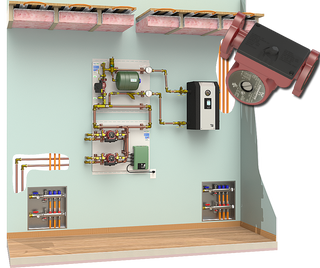

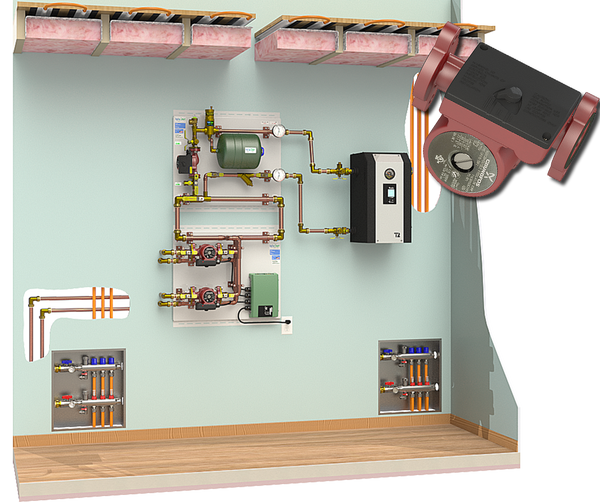

Thermo 2000 Electric Boiler w/ HSPS120MPH Master Panel and Zoning Panel
The Master Pump Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
Pair with a pump zoning panel based on the number of zones needed.
2-4
Number of Thermostats
190° F
Max Water Temperature
120,000
Max BTU's
High Temperature

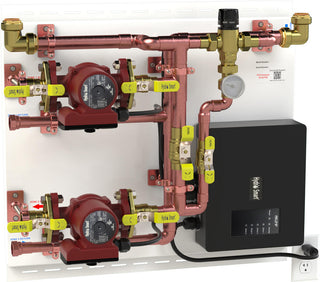

Zone by Pump Master Panel
Zoning by Pump Panel

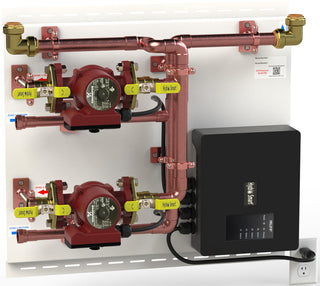

2 Zone / 1 Water Delivery Temperature
Zoning by Pump Panel

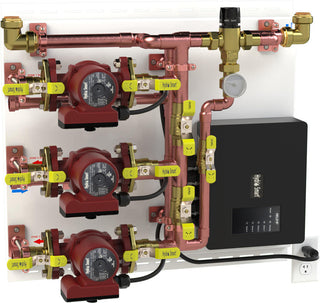

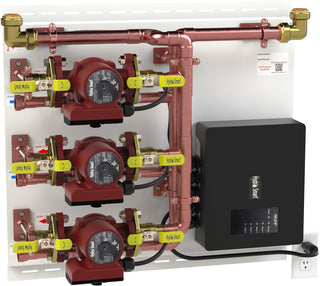

3 Zone / 1 Water Delivery Temperature
Zoning by Pump Panel

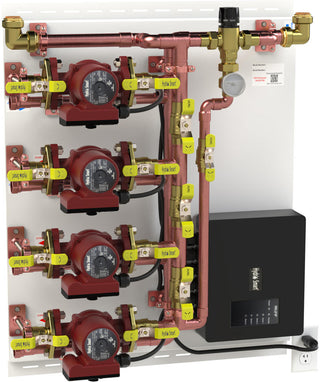

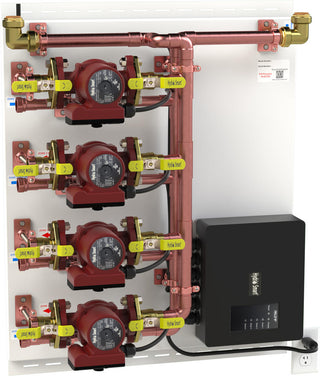

4 Zone / 1 Water Delivery Temperature
Zoning by Pump Panel
2 Zone / 2 Water Delivery Temperature
Zoning by Pump Panel
3 Zone / 2 Water Delivery Temperature
Zoning by Pump Panel
4 Zone / 2 Water Delivery Temperature
