Zone by Actuator

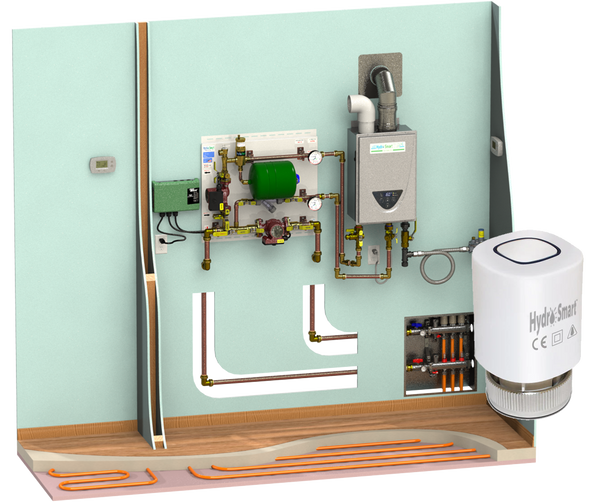

HS115Plus Gas Boiler w/ HSPS120MTL Master Panel
divider
The Master Actuator Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
This system is used with a low temperature boiler and tubing-in-concrete emitter.
No zoning panels needed as the zones are controlled by the actuators located on the manifolds.
divider
2-4
Number of Thermostats
140° F
Max Water Temperature
120,000
Max BTU's
HS115Plus Gas Boiler
Low Temperature
HSPS120MTL Master Panel
Zone by Actuator Master Panel
24V Thermal Actuator - Normally Closed
24V, 4-Wire w/ End Switch
