HSPS120MZL - Zone by Valve Master Panel
Description

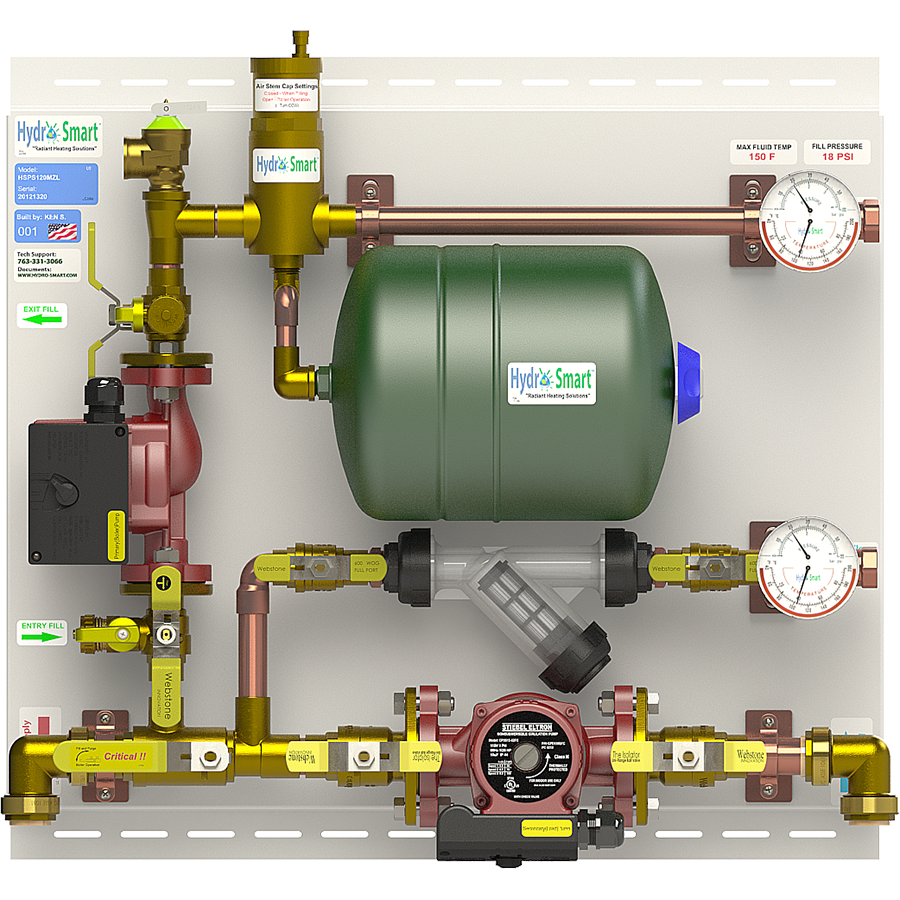

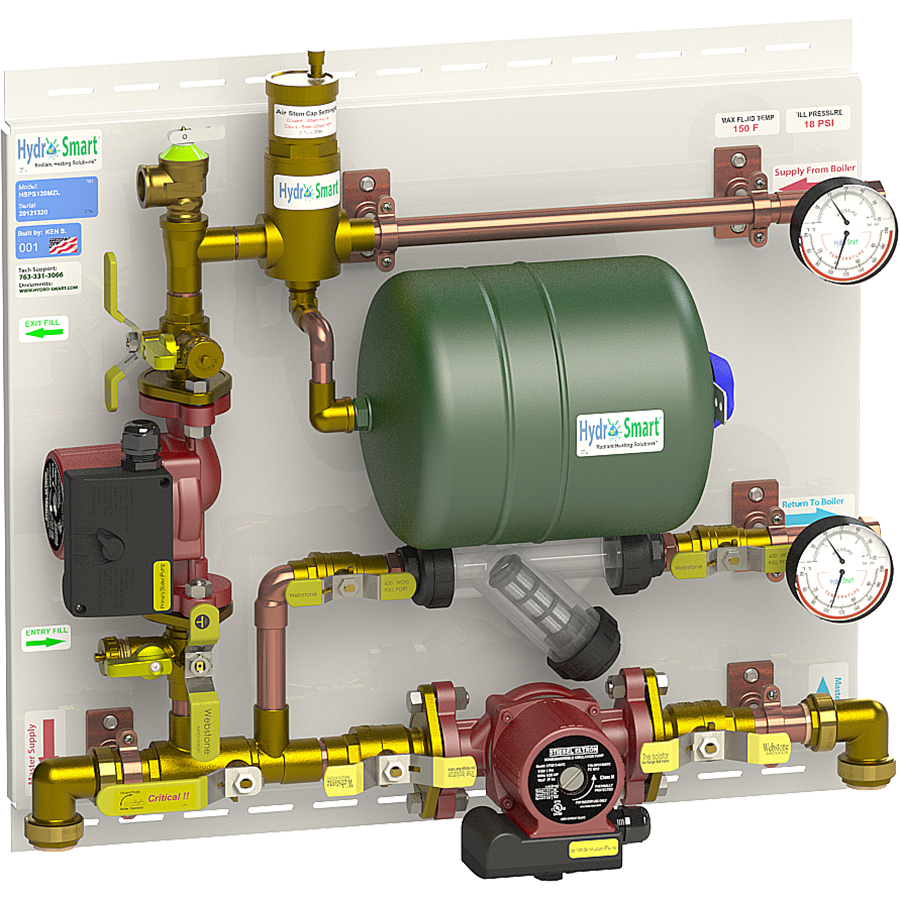

The HSPS120MZL is a multi zone, low temperature integrator panel for radiant heat when zoning by zone valves. This panel is designed for Tubing In Concrete emitters such as Embedded Concrete or Staple Down/Pour Over. It features Primary/Secondary plumbing, expansion tank, clear y-strainer, supply and return pressure/temperature gauges, and other components necessary to ensure your system runs smoothly. This panel requires an additional Zoning By Zone Valves-Zone Panel.
Features
Sample System Views
Zone by Valve
HS115Plus Gas Boiler w/ HSPS120MZL Master Panel and Zoning Panel
# of Zones/Tstats: 2-4
Max Water Temp: 140° F
Max BTU's: 120,000
Zone by Valve
HS120Con Gas Boiler w/ HSPS120MZL Master Panel and Zoning Panel
# of Zones/Tstats: 2-4
Max Water Temp: 140° F
Max BTU's: 120,000
Zone by Valve
Hydro Shark Electric Boiler w/ HSPS120MZL Master Panel and Zoning Panel
# of Zones/Tstats: 2-4
Max Water Temp: 140° F
Max BTU's: 120,000
Required Zoning Panels
Select the appropriate zoning panel based on the number of zones and water delivery temperatures your system will have. NOTE: 2 different emitters require 2 water delivery temperature zone panels.
ZONE BY VALVE ZONE PANEL
HS1T2ZZV
Number of Thermostats/Zones: 2
Water Delivery Temp: 1
ZONE BY VALVE ZONE PANEL
HS1T3ZZV
Number of Thermostats/Zones: 3
Water Delivery Temp: 1
ZONE BY VALVE ZONE PANEL
HS1T4ZZV
Number of Thermostats/Zones: 4
Water Delivery Temp: 1
