High Temp

HSPS120HT - One Zone Master Panel

SKU: 665-0901
One Zone
High Temp
# of Zones/T'stats: 1

Description

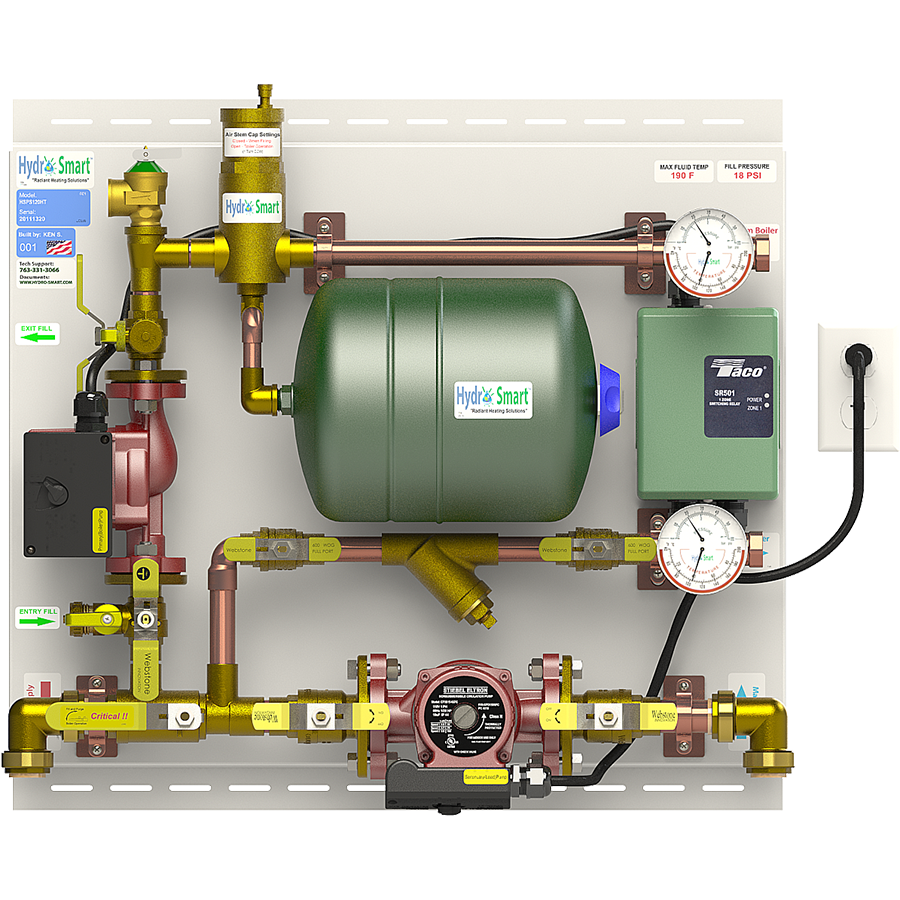

The HSPS120HT is a one zone, high temperature integrator panel for radiant heat. This panel is designed for Tubing In Concrete emitters such as Embedded Concrete or Staple Down/Pour Over, Baseboard, Radiators, or Staple Up. It features Primary/Secondary plumbing, expansion tank, brass y-strainer, supply and return pressure/temperature gauges, and other components necessary to ensure your system runs smoothly.

Features:

• Lifetime Tech Support
• Y-Strainer Isolators
• Hydraulic Separation Between Boiler and Emitter Circuits
• Precision Solder Joints
• Pressure Tested Solder Joints
• Clear Coat Over Copper
• 1-Year Limited Warranty
• Easy Access to All Major Components
• Quick Installation - Save 9+ Hours of Installation
• Works with more than 30+ Boilers - Gas & Electric
• 10 Ft. Power Cord

You may also like

Sample System Views

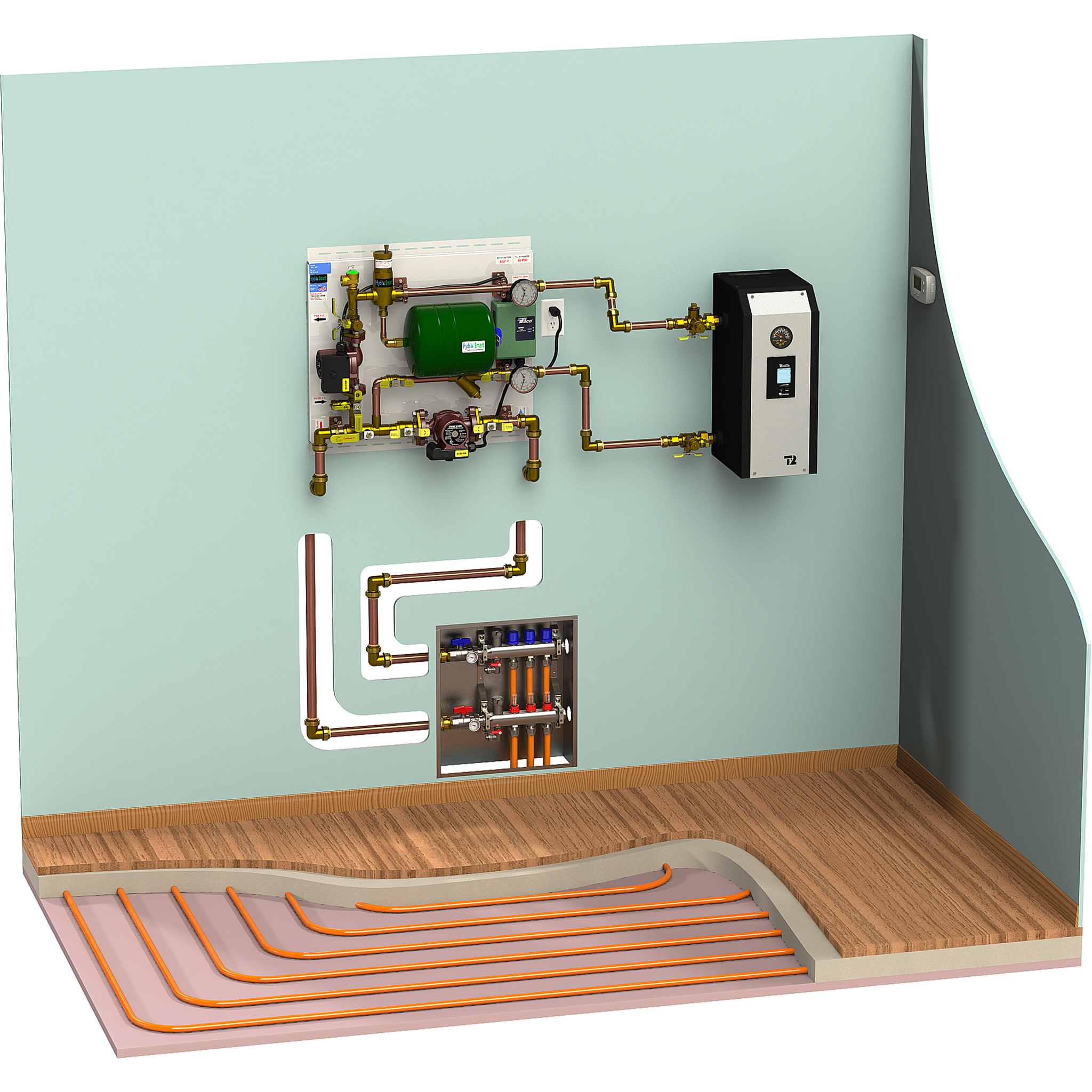

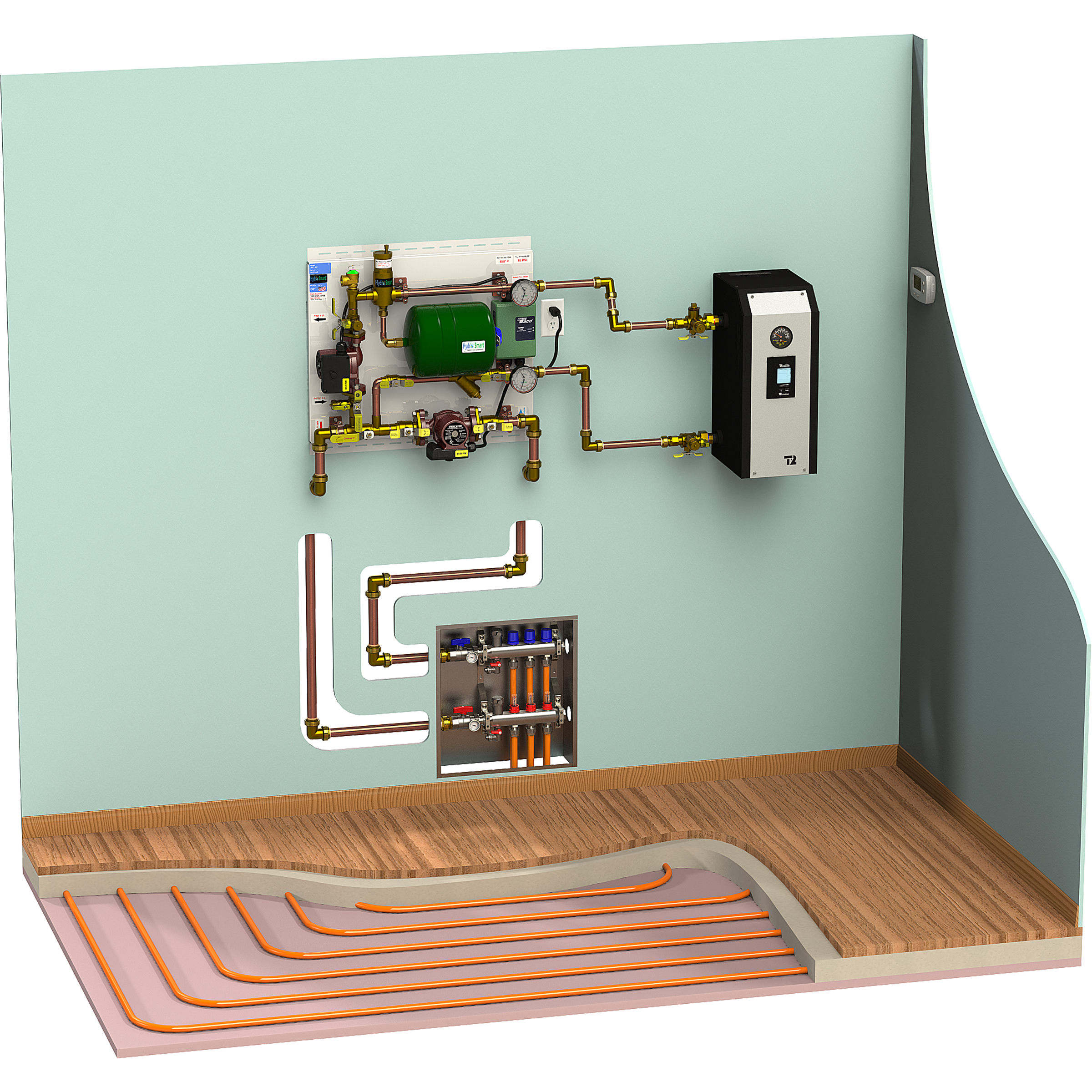

ONE Zone System

Thermo 2000 Electric Boiler w/ HSPS120HT Master Panel

# of Zones/Tstats: 1
Max Water Temp: 190° F
Max BTU's: 120,000

Zoning Panels

A Zoning Panel is NOT required for One Zone Panels

Compatible Boilers

15kW Electric Boiler

Thermo 2000 bth ULTRA 15KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

18kW Electric Boiler

Thermo 2000 bth ULTRA 18KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

20kW Electric Boiler

Thermo 2000 bth ULTRA 20KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

24kW Electric Boiler

Thermo 2000 bth ULTRA 24KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

27kW Electric Boiler

Thermo 2000 bth ULTRA 27KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

29kW Electric Boiler

Thermo 2000 bth ULTRA 29KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

33kW Electric Boiler

Thermo 2000 bth ULTRA 33KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

36kW Electric Boiler

Thermo 2000 bth ULTRA 36KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

3kW Electric Boiler

Thermo 2000 Mini ULTRA 3KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

6kW Electric Boiler

Thermo 2000 Mini ULTRA 6KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

9kW Electric Boiler

Thermo 2000 Mini ULTRA 9KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

12kW Electric Boiler

Thermo 2000 Mini ULTRA 12KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

7.5kW Electric Boiler

Thermo 2000 Mini ULTRA 7.5kW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

4.5kW Electric Boiler

Thermo 2000 Mini ULTRA 4.5KW Electric Boiler


Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100
