High Temp

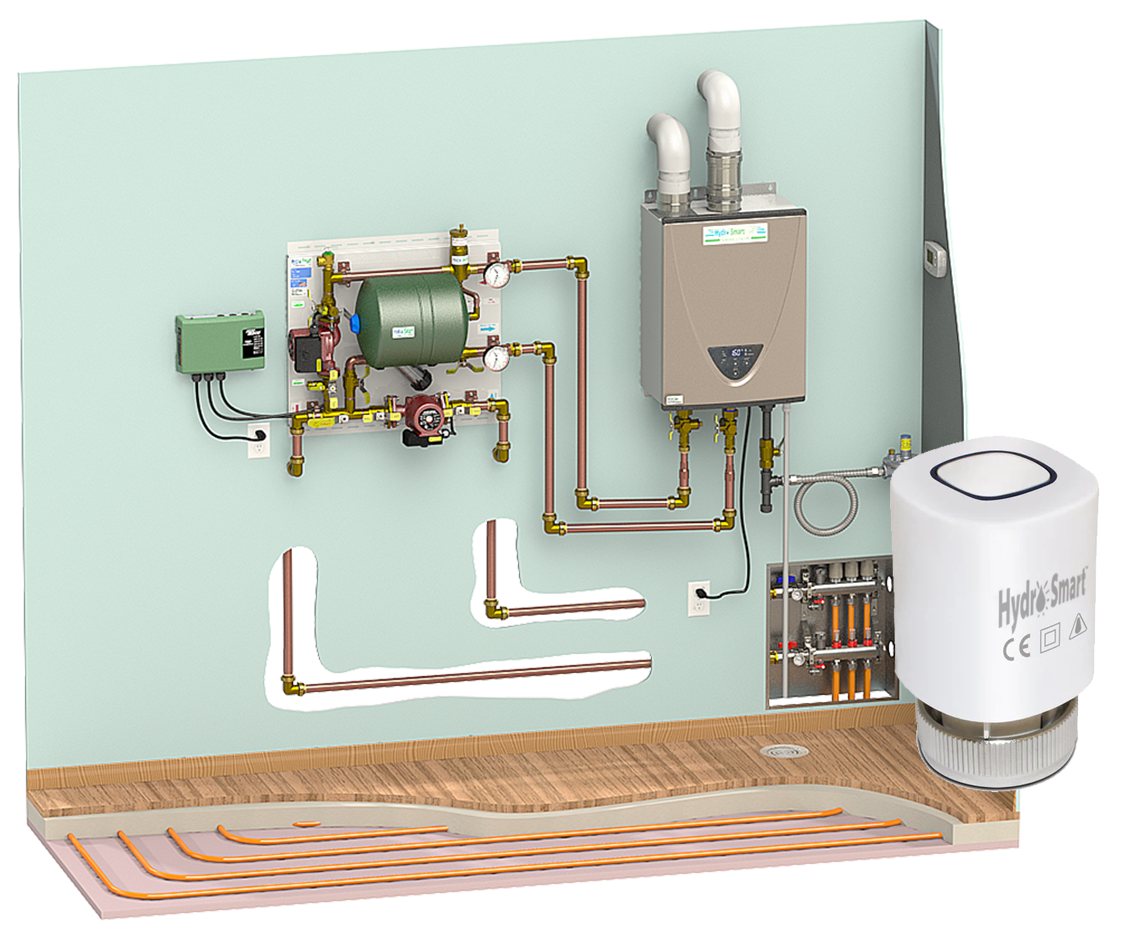

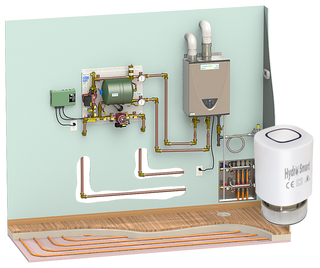

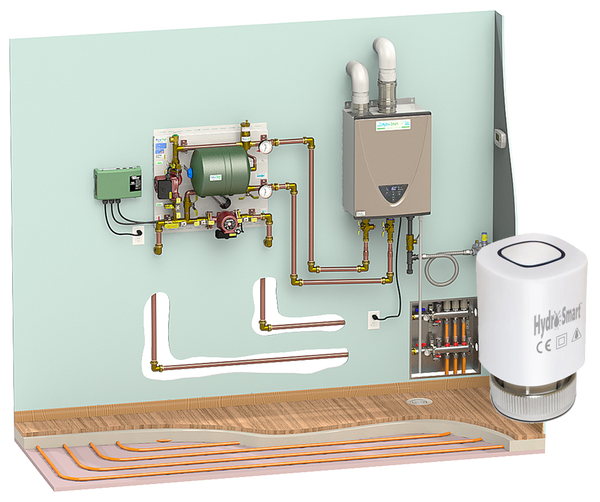

HS199Con Zone by Actuator

Number of Thermostats: 2-4
Max Water Temp: 190° F
Max BTU's: 190,000

Description

The Master Actuator Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.

This system is used with a high temperature boiler and tubing-in-concrete, staple up, baseboard and radiator emitters.

No zoning panels needed as the zones are controlled by the actuators located on the manifolds.

Features

• Lifetime Tech Support
• Y-Strainer Isolators
• Hydraulic Separation Between Boiler and Emitter Circuits
• Precision Solder Joints
• Pressure Tested Solder Joints
• Clear Coat Over Copper
• 1-Year Limited Warranty
• Easy Access to All Major Components
• Quick Installation - Save 9+ Hours of Installation
• Works with more than 30+ Boilers - Gas & Electric
• 10 Ft. Power Cord

Compatible Emitters

Low Temperature Emitter

Tubing In Concrete

Learn More

High Temperature Emitter

Staple Up

Learn More

High Temperature Emitter

Radiator / Baseboard

Learn More

Main System Components

High Temperature

HS199Con LP Gas Boiler

High Temperature

HS199Con NG Gas Boiler

Zone by Actuator Master Panel

HSPS190MTH

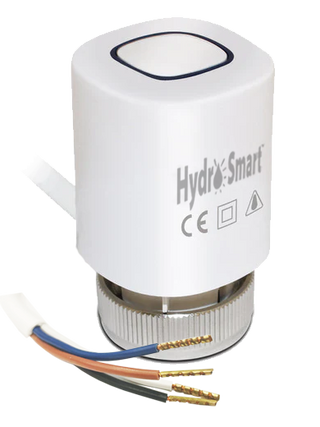

24V Thermal Actuator - Normally Closed

24V, 4-Wire w/ End Switch

Finish Your System

Thermostats

Manifolds & Accessories

Tubing & Tools

SPACE HEATING SIZING GUIDE

900 - 5000 SQ FEET

50° F OPERATION
  • Garage
  • Post Frame Buildings

70° F OPERATION
  • Whole House
  • Basement
  • Sunroom
  • Garage
  • Post Frame Buildings

Each unit when installed and operated per the installation instructions has a 2-year warranty covering all parts and the heat exchanger. See manufacturer warranty for full details. Each Hydro Smart Integrator Panel, when installed and operated per the installation instructions, has a 1 year warranty covering all parts. No labor allowances. See manufacturer warranty for full details.

Micro-Boilers & Hydro Smart Integrator Panels sold separately. Guide is based on insulating to a R19 in walls, R38 in ceilings, maximum 12 ft. sidewalls, with 2” of extruded styrene insulation around perimeter & under slab emitter and/or 3-1/2” of fiberglass insulation for staple up emitter. For more accurate sizing, a BTU heat loss of the heated space should be considered.
ALWAYS CHECK WITH & FOLLOW LOCAL CODES
