High Temp

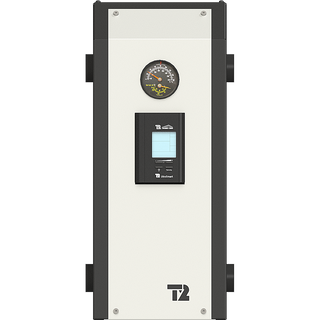

Thermo 2000 mini ULTRA 12kW Electric Boiler

SKU: 665-2155
Max Temp: 190° F
Max BTU's: 120,000
Energy Factor: 100%

Description

100% compact Our mini electric boilers are renowned for their compact design. Thanks to their reduced sizes, these heating systems fit into even the smallest of spaces. In addition, the piping can be connected in multiple ways, ensuring an effortless installation.

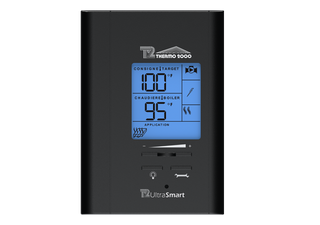

100% efficient Our boilers waste no energy. Producing no combustion or GHG emissions, the mini electric boiler is a highly energy-efficient and green alternative. Maintenance is simple and kept to a minimum. The addition of the UltraSmart TM controller also helps to increase overall system performance.

100% comfort Silent and discreet, mini electric boilers are ideal for single-family homes and condominiums. Whether you need a hydronic system to heat your basement, garage or any other type of application, the compact mini is the intelligent choice for heating.

Features

• Safety control to limit excessively high temperatures
• 120 V pump power supply
• 24 V electrical supply for thermostat and other accessories
• 30 PSI safety relief valve
• Drain/purge valve
• 208/240 VAC electrical supply
• Energy Factor: 100%
• Water Temp Range: 50° - 190° F
• No venting required

You May Also Need:

Compatible Emitters

Low Temperature Emitter

Tubing In Concrete

Learn More

High Temperature Emitter

Staple Up

Learn More

High Temperature Emitter

Radiator / Baseboard

Learn More

Available at Menards

Related Boilers

Available at Menards

3kW Electric Boiler

Thermo 2000 Mini ULTRA 3KW Electric Boiler

Energy Factor: 100%
Max Temp: 190° F
Max BTU's: 120,000

Available at Menards

4.5kW Electric Boiler

Thermo 2000 Mini ULTRA 4.5KW Electric Boiler

Energy Factor: 100
Max Temp: 190° F
Max BTU's: 120,000

Available at Menards

6kW Electric Boiler

Thermo 2000 Mini ULTRA 6KW Electric Boiler

Energy Factor: 100%
Max Temp: 190° F
Max BTU's: 120,000

Available at Menards

9kW Electric Boiler

Thermo 2000 Mini ULTRA 9KW Electric Boiler

Energy Factor: 100%
Max Temp: 190° F
Max BTU's: 120,000

Available at Menards

7.5kW Electric Boiler

Thermo 2000 Mini ULTRA 7.5kW Electric Boiler

Energy Factor: 100%
Max Temp: 190° F
Max BTU's: 120,000

Recommended Products

Thermo 2000 mini ULTRA 12kW Electric Boiler

Sample System Views

ONE Zone System

Thermo 2000 Electric Boiler w/ HSPS120HT Master Panel

Zone by Pump

Thermo 2000 Electric Boiler w/ HSPS120MPH Master Panel and Zoning Panel

Zone by Valve

Thermo 2000 Electric Boiler w/ HSPS120MZH Master Panel and Zoning Panel

Zone by Actuator

Thermo 2000 Electric Boiler w/ HSPS120MTH Master Panel

Compatible Master Panels

Install your system easily with our Hydro-Smart panels that are pre-wired, pre-plumbed and pressure tested.

Hydro-Smart Panels help make radiant heat Easy & Reliable

Constructed with top quality materials, including heavy duty type L copper pipe and a powder coated panel.

Engineered and proven panel design uses professional hydronic practices.

By working smarter not harder, a pre-assembled panel saves job site labor expense and time.

With nothing extra and nothing spared on each panel, every component is there to help ensure your system provides years of trouble free operation.

High Temp One Zone Master Panel

HSPS120HT

# of Zones/Thermostats: 1
Max Water Temperature: 190° F
Max BTU's: 120,000

High Temp Master Pump Panel

HSPS120MPH

# of Zones/Thermostats: 2-4
Max Water Temperature: 190° F
Max BTU's: 120,000

High Temp Master Valve Panel

HSPS120MZH

# of Zones/Thermostats: 2-4
Max Water Temperature: 190° F
Max BTU's: 120,000

High Temp Master Actuator Panel

HSPS120MTH

# of Zones/Thermostats: 2-4
Max Water Temperature: 190° F
Max BTU's: 120,000

SPACE HEATING SIZING GUIDE

Thermo Mini Ultra 12

1300 - 1700 Sq Feet

50° F OPERATION
  • Garage
  • Post Frame Buildings


1000 - 1300 Sq Feet

70° F OPERATION
  • Whole House
  • Basement
  • Sunroom
  • Garage
  • Post Frame Buildings

Each unit when installed and operated per the installation instructions has a 2-year warranty covering all parts and the heat exchanger. See manufacturer warranty for full details. Each Hydro Smart Integrator Panel, when installed and operated per the installation instructions, has a 1 year warranty covering all parts. No labor allowances. See manufacturer warranty for full details.

Micro-Boilers & Hydro Smart Integrator Panels sold separately. Guide is based on insulating to a R19 in walls, R38 in ceilings, maximum 12 ft. sidewalls, with 2” of extruded styrene insulation around perimeter & under slab emitter and/or 3-1/2” of fiberglass insulation for staple up emitter. For more accurate sizing, a BTU heat loss of the heated space should be considered.
ALWAYS CHECK WITH & FOLLOW LOCAL CODES
